Precision linear motion is the cornerstone of countless automated systems, from intricate robotics to high-speed CNC machining. Achieving this precision hinges, quite literally, on the accurate alignment of linear rails. Misalignment, even by fractions of a millimeter, can introduce friction, wear, binding, and ultimately, catastrophic system failure. Therefore, understanding the intricacies of linear rail alignment is paramount to ensuring optimal performance and longevity. This seemingly straightforward task demands meticulous attention to detail and a thorough understanding of the underlying principles. In this guide, we’ll delve into the essential techniques and tools required to align linear rails with the utmost accuracy, guaranteeing smooth and reliable operation for years to come. Furthermore, we will explore the common pitfalls to avoid and the troubleshooting steps to take should problems arise. Ultimately, mastering linear rail alignment is an investment in the reliability and efficiency of any system that relies on precise linear motion.
Initially, preparation is key to a successful alignment. Before commencing the alignment process, meticulously clean all surfaces involved, including the rails, carriages, and mounting base. Even minute particles of dust or debris can significantly impact the accuracy of the alignment. Furthermore, ensure the mounting surface is perfectly flat and level; any deviations will be amplified in the final alignment. A precision level and surface plate are indispensable tools for this stage. Subsequently, choose appropriate mounting hardware and ensure it is properly torqued according to the manufacturer’s specifications. Over-tightening can distort the rails, while under-tightening can lead to movement and misalignment during operation. In addition to these preliminary steps, it’s crucial to select the right measurement tools for the job. Dial indicators, laser interferometers, and straight edges, depending on the required precision, are commonly employed to measure parallelism and straightness. Moreover, carefully consider the environment in which the rails will operate, as temperature fluctuations can impact the alignment. Finally, always refer to the manufacturer’s documentation for specific instructions related to your particular linear rail system.
Moving forward, the actual alignment process demands patience and precision. Typically, the process begins by roughly positioning the rails on the mounting surface. Then, using a dial indicator or laser interferometer, measure the parallelism between the rails along their length. Adjust the rail positions incrementally until the desired parallelism is achieved. Simultaneously, check for straightness along each individual rail using a straight edge or laser interferometer. This ensures that the rails are not bowed or twisted. Furthermore, it’s critical to maintain consistent preloading on the carriages throughout the alignment process. This prevents variations in the measurements and ensures accurate results. As the alignment progresses, tighten the mounting hardware gradually, re-checking the alignment after each adjustment. This iterative process continues until the rails are perfectly aligned according to the specified tolerances. Lastly, perform a final verification of both parallelism and straightness after all hardware is fully tightened. This confirms that the alignment has been maintained and that the system is ready for operation. By following these meticulous steps, you can ensure the long-term performance and reliability of your linear motion system.
Preparing for Rail Alignment
Before you even think about putting those rails together, take a deep breath and get organized. This prep work is crucial for a smooth alignment process and will save you tons of headaches down the road. Think of it like baking a cake – you wouldn’t just throw the ingredients in a pan without measuring, would you? Same principle applies here.
First things first, gather your tools. You’ll need a good quality straight edge, feeler gauges, a dial indicator magnetic base, and a level. Don’t skimp on these – accurate tools are your best friends in this process. A precision level, ideally digital, is worth its weight in gold. Also, grab some cleaning supplies like alcohol wipes and a clean cloth. Rails can accumulate grime during shipping and storage, and a clean surface ensures accurate measurements and prevents any debris from interfering with the alignment.
Next, prepare your mounting surface. This is where things get really important. Whether you’re working on a machine bed, a table, or any other surface, it needs to be absolutely spotless and flat. Use a scraper to remove any burrs or imperfections. Think of it like preparing the canvas for a masterpiece. The flatter and cleaner the surface, the better the rails will sit and the smoother the movement will be. Use your straight edge and feeler gauges to check for flatness across the entire mounting surface. Even tiny deviations can lead to misalignment and binding later on.
Now, let’s talk about temperature. This is often overlooked, but temperature variations can significantly affect the accuracy of your alignment. Ideally, you should allow your rails and mounting surface to acclimatize to the ambient temperature of the room where you’ll be working. This minimizes expansion or contraction during and after the alignment process, ensuring long-term stability. Aim for a stable temperature and try to avoid working in direct sunlight or near heat sources.
Finally, pre-plan your mounting method. Will you be using bolts, clamps, or adhesive? Make sure you have the appropriate hardware and tools ready to go. Dry-fit the rails on the mounting surface without securing them to get a feel for the layout and identify any potential issues. This is your last chance to catch any surprises before you commit to the final alignment. Consider the following factors when choosing your mounting method:
| Mounting Method | Pros | Cons |
|---|---|---|
| Bolting | Strong, adjustable, removable | Requires precise hole drilling |
| Clamping | Quick, easy, temporary | Less secure, can introduce vibration |
| Adhesive Bonding | Permanent, distributes load evenly | Difficult to adjust or remove |
Double-Checking Your Preparation
Before moving on to the actual alignment, take a moment to double-check everything. Are your tools calibrated and clean? Is the mounting surface perfectly flat and clean? Are your rails and mounting surface at the same temperature? Have you dry-fit everything and planned your mounting method? By taking these precautions, you’ll be setting yourself up for a successful rail alignment and ensuring smooth, precise linear motion for years to come.
Establishing a Baseline
Setting up a rock-solid baseline is the crucial first step in aligning linear rails. Think of it like building a house – you wouldn’t start with the roof, would you? A precise baseline serves as your reference point for everything that follows, ensuring your rails are perfectly parallel and level. Without it, you’re likely to encounter problems with binding, uneven motion, and premature wear.
Identifying Your Primary Rail
First things first, you need to choose your primary rail. This will be the rail you use as the foundation for your baseline. Generally, it’s best to select the rail that supports the most load or experiences the greatest amount of movement. For example, in a CNC machine, this might be the rail that carries the cutting head. If you’re not sure which rail is most critical, consult the machine’s documentation or an experienced machinist.
Setting Up the Baseline
Now comes the important part: actually establishing the baseline. There are several ways to achieve this, each with its own pros and cons. One popular method involves using a precision level and a straight edge. Place the straight edge along the primary rail, ensuring it covers a significant portion of the rail’s length. Then, use the precision level to check for levelness along the straight edge. Adjust the rail’s mounting hardware until the level reads true across the entire length. This process might involve tiny, incremental adjustments, so patience is key. Remember, even a slight deviation can compound over the length of the rail system.
Another effective method involves using an optical level. This approach is particularly useful for longer rail systems. An optical level projects a highly accurate horizontal laser beam, which you can use as a visual reference for your baseline. Position the optical level at one end of the primary rail and aim the laser beam along the rail’s length. Adjust the rail’s mounting hardware until the rail aligns perfectly with the laser beam. Optical levels are significantly more expensive than standard levels, but they offer unmatched accuracy over long distances.
Finally, you can utilize specialized tools like autocollimators or laser interferometers for ultra-precise alignment. These tools are typically reserved for high-precision applications where even microscopic deviations are unacceptable. They use advanced optical principles to measure deviations with incredible accuracy. However, these tools require specialized training and expertise to operate effectively.
Regardless of the method you choose, it’s crucial to double-check your work. After adjusting the primary rail, verify its alignment several times using your chosen method. This redundancy will help ensure that you haven’t introduced any errors during the adjustment process.
| Method | Accuracy | Cost | Complexity |
|---|---|---|---|
| Precision Level & Straight Edge | Moderate | Low | Low |
| Optical Level | High | Medium | Medium |
| Autocollimator/Laser Interferometer | Very High | High | High |
Verifying the Baseline
Once you’re satisfied with the primary rail’s alignment, it’s time to verify the baseline. This involves checking the straightness of the rail along its entire length. You can do this by using a precision straight edge and feeler gauges. Place the straight edge along the rail and use the feeler gauges to measure any gaps between the straight edge and the rail. Ideally, there should be no measurable gap. If you do find a gap, you may need to further adjust the rail’s mounting hardware. This verification process is critical to ensure the rail is perfectly straight and will provide a smooth, consistent base for your other rails.
Documenting Your Baseline
Finally, after meticulously establishing and verifying your baseline, don’t forget to document everything. Record the measurements, the tools used, and any adjustments made. This documentation will be invaluable for future maintenance and troubleshooting. It also serves as a record of your meticulous work and can be helpful if you need to replicate the setup in the future. A well-documented baseline is a sign of a professional and thorough approach.
Mounting the First Rail
Getting that first rail down correctly sets the stage for the entire project. It’s the foundation upon which all other rails will be aligned, so taking your time and being precise here is absolutely crucial. Rushing this step can lead to misalignment down the line, causing headaches and potentially ruining your project. Think of it like building a house – a wonky foundation means a wonky house!
Start by meticulously cleaning the mounting surface. Any debris, burrs, or even tiny particles of dust can throw off your alignment. Use a good quality cleaner appropriate for your surface material, followed by a thorough wipe-down. A clean surface ensures optimal contact between the rail and the mounting surface. We’re aiming for perfection here, so don’t cut corners!
Positioning the Rail
Carefully position the first rail on the cleaned mounting surface, aligning it with your marked guidelines. These guidelines should already be in place based on your project’s specifications. Double-check your measurements – measure twice, cut once, as the old saying goes. A slight deviation at this stage can magnify into a significant error further down the line. Use clamps to lightly secure the rail in position, ensuring it doesn’t shift during the bolting process. Don’t overtighten the clamps at this point; we just want to prevent movement. We’ll finalize the tightening later. Think of it like a dress fitting – you pin things in place before the final stitching.
Securing the Rail
With the rail loosely clamped in position, begin the bolting process. Consult your rail manufacturer’s instructions for the correct torque specifications. Over-tightening can warp the rail, while under-tightening can lead to instability. Use a calibrated torque wrench to ensure accurate tightening. Start by lightly tightening the bolts in a criss-cross pattern. This distributes the clamping force evenly, minimizing the risk of bending or twisting the rail. Gradually increase the torque in stages, again following the criss-cross pattern, until the manufacturer’s recommended torque is reached. This staged tightening ensures even pressure and prevents any sudden shifts that might misalign the rail.
Initial Alignment Check
Once the first rail is securely bolted down, it’s time for an initial alignment check. This is where we catch any minor deviations before they become major problems. Use a precision straight edge and feeler gauges to verify straightness along the length of the rail. Check for any bowing, twisting, or other irregularities. The table below outlines acceptable tolerances for various applications. Consult your project requirements for specific tolerances.
| Application | Tolerance |
|---|---|
| High Precision | ±0.001 inch |
| Standard Precision | ±0.005 inch |
| General Purpose | ±0.010 inch |
If you find any deviations outside the acceptable tolerance, loosen the bolts slightly and make the necessary adjustments. Re-tighten the bolts and re-check the alignment. Repeat this process until the rail is perfectly straight. This careful attention to detail in mounting the first rail will pay dividends when it comes time to align the remaining rails.

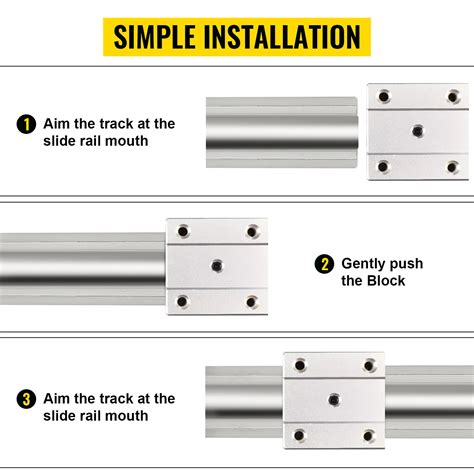

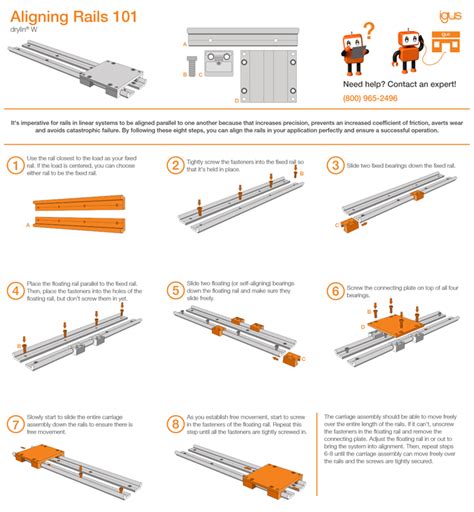

Aligning the Second Rail to the Baseline
Once your first rail is securely fastened and acts as your baseline, aligning the second rail parallel to it is crucial for smooth and precise linear motion. Accuracy at this stage prevents binding, wear, and tear, and ensures the longevity of your linear system.
Preparation is Key
Before you even think about placing the second rail, make sure the mounting surface for it is clean and free of debris. Any small particles trapped between the rail and the mounting surface can throw off the alignment and create problems down the line. A clean, flat surface is the foundation of a well-aligned system.
Initial Placement
Carefully position the second rail alongside the baseline rail. Leave a small gap between the two rails – just enough to allow for thermal expansion and contraction, especially important if your system will be operating under varying temperatures. Check your rail manufacturer’s specifications for the recommended gap. Use spacers to ensure a uniform distance between the two rails.
Securing the Second Rail
Lightly fasten the second rail to the mounting surface using just a few screws. Don’t tighten them fully at this point; this allows for adjustments during the alignment process. The goal is to have the rail held in place but still movable.
The Fine-Tuning Process
Now comes the most crucial part: fine-tuning the alignment. This process involves meticulous measurement and adjustment to ensure perfect parallelism between the two rails. Start by selecting a high-precision measuring tool, such as a dial indicator or a laser alignment tool. Digital indicators offer a precise numerical readout, while laser tools provide a visual representation of alignment deviations. Consider the length of your rails when selecting your tool; longer rails might benefit from the extended reach and accuracy of a laser system. For shorter rails, a dial indicator might be perfectly sufficient.
Begin at one end of the rails. Position your chosen measuring instrument to measure the distance between the two rails. Record this measurement. Now, move the measuring instrument along the length of the rails at regular intervals, taking readings at each point. A good practice is to measure at the ends, the middle, and at several points in between. This allows you to build a comprehensive picture of the alignment across the entire length of the rails.
As you take measurements, note any deviations from the initial reading. These deviations indicate misalignment. Small adjustments to the mounting screws of the second rail can correct these discrepancies. Loosen the screws slightly in the areas where the rail needs to be moved, adjust the rail’s position, and then gently re-tighten the screws. It’s a process of small, incremental adjustments, re-measuring after each tweak to ensure the rails are moving towards perfect parallelism.
Patience is key during this stage. It might take several rounds of measurement and adjustment to achieve optimal alignment. Don’t rush the process, as even minor misalignments can lead to significant problems later on. Take your time, be methodical in your measurements, and continue adjusting until the measurements along the entire length of the rails are consistent within your desired tolerance. This ensures a smooth, efficient, and long-lasting linear motion system.
| Measurement Point | Distance (mm) | Adjustment Needed |
|---|---|---|
| Start | 100.00 | None |
| 1/4 point | 100.02 | Minor adjustment to lower rail |
| Midpoint | 100.05 | Minor adjustment to lower rail |
| 3/4 point | 100.02 | Minor adjustment to lower rail |
| End | 100.00 | None |
Final Tightening and Verification
Once the measurements indicate consistent alignment along the entire rail length, tighten all the mounting screws securely. After final tightening, perform one last verification run with your measuring tool to ensure that the alignment hasn’t shifted during the tightening process. This final check confirms the accuracy of your work and provides peace of mind knowing your linear rails are properly aligned.
Securing the Second Rail Temporarily
Alright, so you’ve got your first rail all nicely aligned and secured. Now comes the tricky part: getting that second rail perfectly parallel and at the correct distance. This stage requires patience and a gentle touch to avoid introducing any twists or bends. Rushing this process can lead to binding and uneven motion down the line, so take your time and get it right.
We’ll start by temporarily fixing the second rail in place. This allows us to make adjustments and fine-tune the alignment before permanently securing it. There are a few different methods for temporarily securing the rail, depending on your setup and the materials you have available. Common options include using clamps, temporary bolts, or even strong adhesive tape. The key here is to choose a method that provides enough holding power to prevent movement during alignment, but also allows for easy adjustments.
Choosing the Right Temporary Fasteners
Clamps are a popular choice for their versatility and ease of use. Look for clamps specifically designed for linear rails or those with soft jaws to avoid damaging the rail surface. Temporary bolts offer a more secure hold, particularly for heavier rails or applications where vibration might be a concern. If you’re using bolts, ensure they are not fully tightened at this stage. Leave them slightly loose to allow for minor adjustments. For lighter rails or situations where clamping or bolting isn’t practical, strong double-sided tape can be a surprisingly effective temporary fix.
Positioning the Fasteners
When placing your temporary fasteners, aim for even spacing along the length of the rail. This will help distribute the clamping force and prevent the rail from bowing or twisting. Start by securing the rail at one end, then work your way down, periodically checking the alignment with a straight edge and feeler gauges. The following table provides a general guideline for fastener spacing based on rail length:
| Rail Length | Approximate Fastener Spacing |
|---|---|
| Under 1 meter | 20-30 cm |
| 1-2 meters | 30-50 cm |
| Over 2 meters | 50-70 cm |
Keep in mind that these are just general guidelines. The actual spacing you use will depend on the specific application and the rigidity of the rails. For longer rails, you may need to use more fasteners than the table suggests.
Fine-Tuning the Position
Once the second rail is temporarily secured, it’s time to fine-tune its position. This involves carefully adjusting the rail’s position until it is perfectly parallel to the first rail and at the correct distance. Use feeler gauges to check the gap between the rails at several points along their length, ensuring consistent spacing. A straight edge can be used to verify parallelism. Remember to loosen and retighten the temporary fasteners as you make adjustments. This process might require several iterations of checking, adjusting, and rechecking until you achieve the desired precision.
Remember to double-check your work frequently and make small adjustments as needed. With patience and attention to detail, you’ll have those rails aligned perfectly in no time!
Verifying Final Alignment and Parallelism
Once you’ve roughly aligned your linear rails, it’s crucial to verify the alignment and parallelism to ensure smooth and precise movement. This final check requires a meticulous approach and the right tools. Remember, even small deviations can impact the performance and longevity of your linear motion system.
Methods for Verification
There are several methods you can use to verify the alignment and parallelism of your rails. The best approach depends on the precision required for your application and the tools you have available. Some common methods include using a precision straightedge and feeler gauges, dial indicators, and laser alignment tools.
Using a Straightedge and Feeler Gauges
A precision straightedge, placed along the length of the rail, can help identify any vertical misalignment (height difference) between the rails. Feeler gauges, inserted between the straightedge and the rail, allow you to measure the size of any gaps. This is a relatively simple and cost-effective method, but it’s best suited for applications where high precision isn’t absolutely critical. It’s important to check the alignment at multiple points along the rail.
Using Dial Indicators
Dial indicators provide a more precise measurement of misalignment. Mount the indicator on a magnetic base that can be moved along the rail. The plunger of the indicator should contact the rail surface. As you move the indicator along the rail, observe the readings on the dial. Any deviations will indicate misalignment. This method allows you to quantify the amount of misalignment more accurately than using a straightedge and feeler gauges.
Using Laser Alignment Tools
For the highest precision applications, laser alignment tools are the preferred method. These tools project a laser beam along the length of the rail, allowing you to measure even minute deviations in alignment and parallelism. Laser alignment systems often include software that can analyze the data and provide detailed reports. While this method offers the greatest accuracy, it’s also the most expensive.
Acceptable Tolerance
Determining the acceptable tolerance for misalignment depends entirely on the specific application. High-precision systems, like those used in robotics or CNC machines, require much tighter tolerances than less demanding applications. Consult the manufacturer’s specifications for your linear rails and bearings to determine the recommended alignment tolerances.
Interpreting Results and Adjustments
Once you have your measurements, you can interpret the results and make any necessary adjustments. Small misalignments can often be corrected by shimming the rails. For larger misalignments, you may need to loosen and re-align the mounting hardware. Always re-check the alignment after making any adjustments.
Example Tolerances for Different Applications
| Application Type | Typical Tolerance (mm) |
|---|---|
| High Precision (e.g., Semiconductor Manufacturing) | 0.01 - 0.05 |
| Medium Precision (e.g., CNC Machining) | 0.05 - 0.1 |
| General Automation (e.g., Packaging) | 0.1 - 0.5 |
These are just examples and the specific tolerances for your application may vary. Always consult the manufacturer’s specifications for your linear rails and bearings.
Documenting Your Results
It’s important to document your alignment measurements and any adjustments made. This documentation can be useful for troubleshooting and future maintenance. Keep records of the methods used, the measurements taken, and any corrective actions taken. This information can also be helpful in identifying trends and potential problems.
Troubleshooting Common Alignment Issues
9. Dealing with Twist
Twist, in the context of linear rails, refers to a rotational misalignment along the length of the rails. Imagine one end of the rail being slightly rotated compared to the other, like a twisted ribbon. This can be a tricky issue to diagnose and fix, but with a systematic approach, you can conquer it. Twist often leads to binding and uneven motion, potentially damaging your bearings and reducing the lifespan of your system. So, nipping it in the bud is crucial.
One of the most common causes of twist is an uneven mounting surface. Think of it like building a house on uneven ground – the foundation won’t be stable. Similarly, if your mounting surface isn’t perfectly flat and parallel, it will introduce twist into your rails. Check the flatness of your mounting surface with a precision level, ideally a machinist’s level or a digital level. Even small deviations can cause significant problems over longer rail lengths. Shimming can be your best friend here. Precision shims, available in various thicknesses, can be placed under the rail mounting points to correct minor height discrepancies.
Another culprit can be inconsistencies in the rail itself. Although rare with quality rails, manufacturing tolerances can sometimes result in slight twists. To check for this, use a straight edge and feeler gauges to measure the gap between the straight edge and the rail at various points along its length. If you notice a consistent variation, the rail itself might be twisted. In such cases, contacting the manufacturer is usually the best course of action.
Tightening the mounting bolts in the wrong sequence can also induce twist. Always follow the manufacturer’s recommended tightening sequence, typically a criss-cross pattern, to ensure even pressure distribution. Over-tightening can also warp the rail or the mounting surface. Use a torque wrench to apply the correct torque as specified by the manufacturer.
Here’s a quick look at common twist issues and potential solutions:
| Issue | Possible Cause | Solution |
|---|---|---|
| Binding or uneven motion | Uneven mounting surface | Use shims to level the surface |
| Measurable twist along the rail | Manufacturing defect or damaged rail | Contact the manufacturer for replacement |
| Twist appears after mounting | Incorrect tightening sequence or over-tightening | Loosen bolts, follow correct tightening sequence and torque specifications |
Finally, remember that patience and meticulousness are key. Dealing with twist can be frustrating, but by systematically checking for potential causes and applying the appropriate solutions, you can ensure smooth, accurate, and long-lasting performance from your linear rail system.
Aligning Linear Rails for Optimal Performance
Precise alignment of linear rails is crucial for achieving smooth motion, minimizing wear, and maximizing the lifespan of linear motion systems. Misalignment can lead to increased friction, binding, premature wear of bearings and rails, and ultimately, system failure. A systematic approach, utilizing appropriate tools and techniques, is essential for successful alignment.
Initially, a straight edge and feeler gauges can be used to identify gross misalignments and provide a starting point for finer adjustments. This involves placing the straight edge along the rail and using feeler gauges to measure the gap between the straight edge and the rail at various points. This helps to identify high and low spots along the rail. However, for more precise alignment, the use of a dial indicator and a granite base plate is recommended. The granite base plate provides a stable and flat reference surface, while the dial indicator allows for accurate measurement of deviations from the desired alignment. This method allows for adjustments down to microns, ensuring optimal performance.
Furthermore, the mounting surface for the rails must be properly prepared. The surface should be machined flat and free of debris. Proper torque specifications for mounting bolts should be followed to avoid introducing stress into the system. Finally, regular inspection and maintenance are essential to ensure the alignment is maintained over time. This includes periodic cleaning and lubrication of the rails and bearings.
People Also Ask About Aligning Linear Rails
How do you align two parallel linear rails?
Aligning two parallel linear rails requires a similar approach to aligning a single rail, but with added considerations for parallelism. The key is to ensure both rails are parallel to each other and to the mounting surface.
Using a Straight Edge and Feeler Gauges:
A straight edge can be used across both rails simultaneously to identify gross discrepancies. Feeler gauges then measure the gap between the straight edge and each rail. This provides a preliminary assessment of parallelism and straightness.
Using a Dial Indicator and Granite Base Plate:
For precise alignment, a dial indicator and granite base plate are essential. The dial indicator is mounted on a carriage that travels across both rails, measuring deviations in height and parallelism. This method allows for fine adjustments to achieve optimal alignment.
Optical Methods:
For very high precision applications, optical methods, such as laser interferometry, can be used. These methods offer the highest accuracy but are typically more complex and expensive.
What are the common problems caused by misaligned linear rails?
Misaligned linear rails can lead to several problems, including:
- Increased friction and binding: Misalignment forces the bearings to operate under increased load and friction, leading to binding and jerky movements.
- Premature wear: Increased friction accelerates wear on both the rails and bearings, shortening their lifespan.
- Reduced accuracy and repeatability: Misalignment can affect the accuracy and repeatability of the linear motion system, impacting overall performance.
- Increased noise and vibration: Excessive friction and binding can generate noise and vibration, indicating a problem with alignment.
- System failure: In extreme cases, misalignment can lead to catastrophic system failure.
What tools are needed to align linear rails?
Essential tools for aligning linear rails include:
- Straight edge: Used for initial assessment of straightness.
- Feeler gauges: Used to measure gaps and deviations.
- Dial indicator: Provides precise measurements of deviations.
- Granite base plate: Provides a stable and flat reference surface.
- Torque wrench: Ensures proper tightening of mounting bolts.
- Cleaning supplies: To keep rails and bearings clean.
- Appropriate lubricants: For proper lubrication of the system.
How often should linear rails be checked for alignment?
The frequency of alignment checks depends on the application and operating conditions. High-speed, high-load, and high-precision applications require more frequent checks. A good starting point is to check alignment after initial installation, after any maintenance or repairs, and then periodically based on observed performance. If increased noise, vibration, or binding is observed, an alignment check should be performed immediately.
